Victoria Road Crossover Box diaphragm wall buttress panel construction

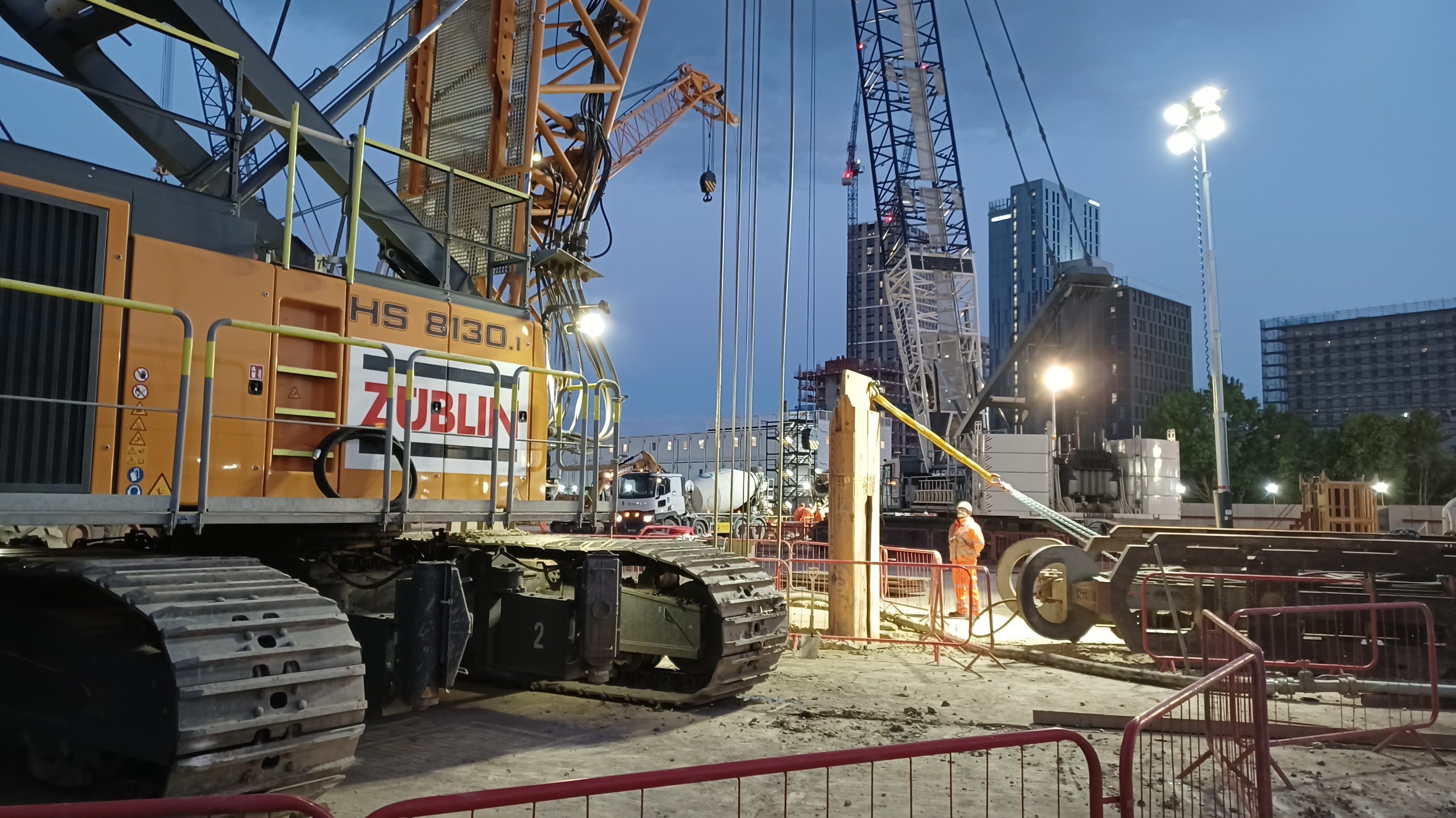

The construction of buttress panels for the caterpillar shaped diaphragm wall shaft at VRCB presented some difficult challenges. The complex buttress panel cages needed a significant amount of temporary works to allow them to be lifted into position safely and without damage. Splicing of the heavily reinforced sections posed unacceptable risks to H&S and quality whilst transporting the 35m long and 4.5m wide, cruciform single section cages to site was not feasible. The solution was to construct the 80t cages on-site and in a purpose-built facility providing a CARES compliant environment. The lifting operations of the cages used two 650t cranes performing a tandem lift before the external skeletal truss was removed. All cages were installed successfully and safely achieved through close collaboration between Client, Zueblin and the supply chain. This achievement provides a valuable reference for buttress panel design and related feasibility assessments for future tunnelling projects.
