Thames Tideway Chambers Wharf Shaft Secondary Lining Pressurisation

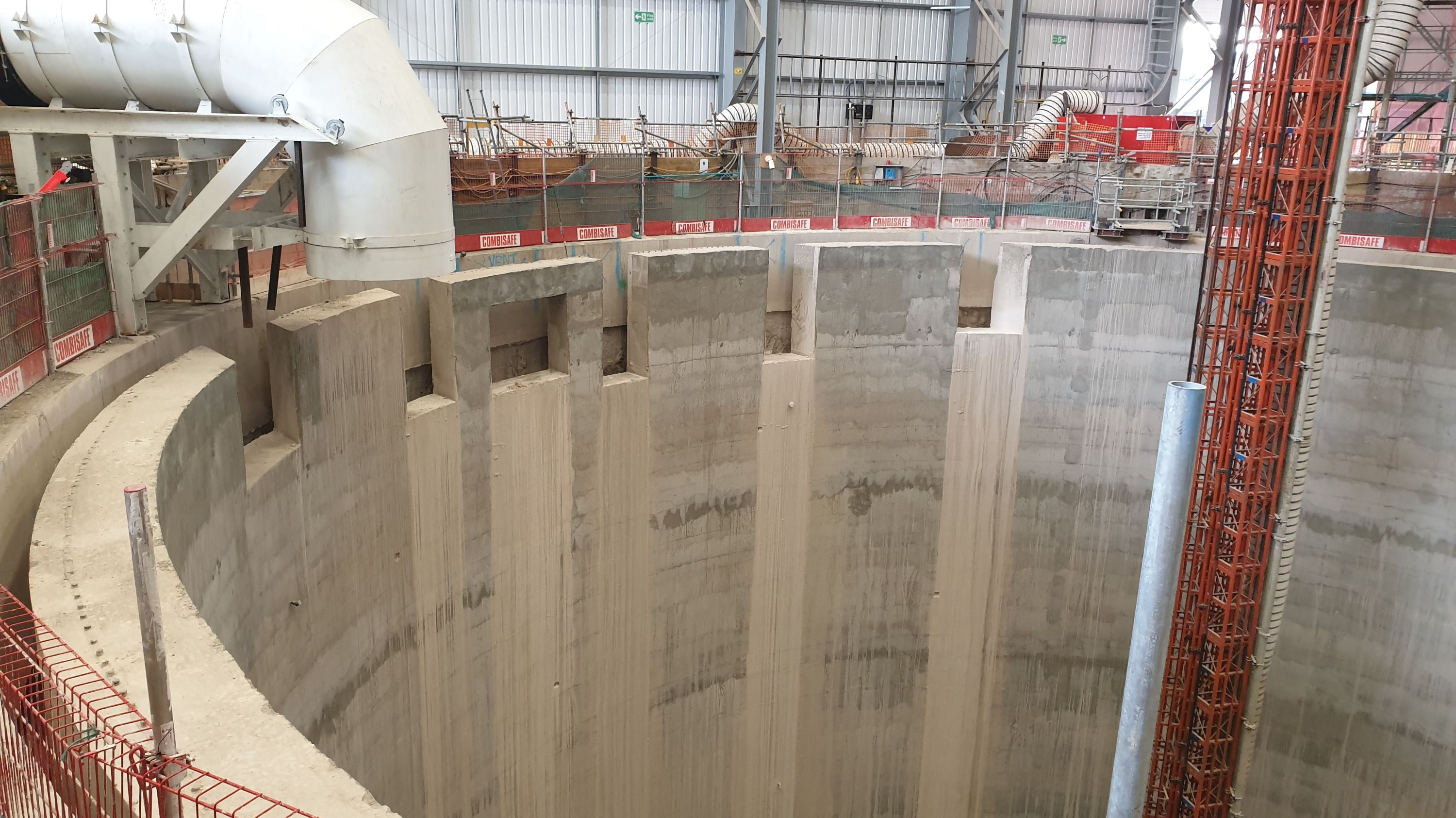

The Thames Tideway project has sustainability embedded throughout the project delivery. At Chambers Wharf, the huge 70m deep, 25 m diameter shaft needed an inner secondary lining to contain the vast volumes of effluent safety. The pressures exerted meant the liner would have to be very robust. To improve the design efficiency, safety, sustainability and cost, an intensely collaborative VE exercise was undertaken between designer, constructor, and client. In a step change to previously applied techniques, the solution was to put the liner into permanent compression by pressurizing it via an external annulus, filled first with water and then concrete, ensuring pressure was constantly applied before being locked in. We were literally and metaphorically, squeezing all we could out of the design. In the liner a 40% reduction, 370 tonnes, was achieved in the reinforcement using this water / concrete pressurized technique, with an approximate carbon saving of 280 tonnes.
